4K IPTV Encoder: The Complete 2026 Buyer's and Setup Guide

Ultra-high-definition delivery stopped being a luxury somewhere around 2024. In 2026, a viewer who opens a stream on a 65-inch panel expects the same sharpness they get from a disc, and they expect it to start in under two seconds. Meeting that expectation over the public internet is not a bandwidth problem — it is an encoding problem.

A 4K IPTV encoder is the device that sits between a video source and the network. It takes an uncompressed signal — typically over HDMI or SDI — squeezes it into a modern compression format, wraps it in a transport protocol, and pushes it to a streaming server that fans it out to televisions, phones and set-top boxes. Everything a viewer perceives as quality is decided in that box.

This guide is written for resellers, venue operators and technical managers who are specifying hardware this year. It covers the signal chain end to end, the specifications worth paying for, a class-by-class comparison, a practical commissioning walkthrough, and the three faults that generate most support tickets.

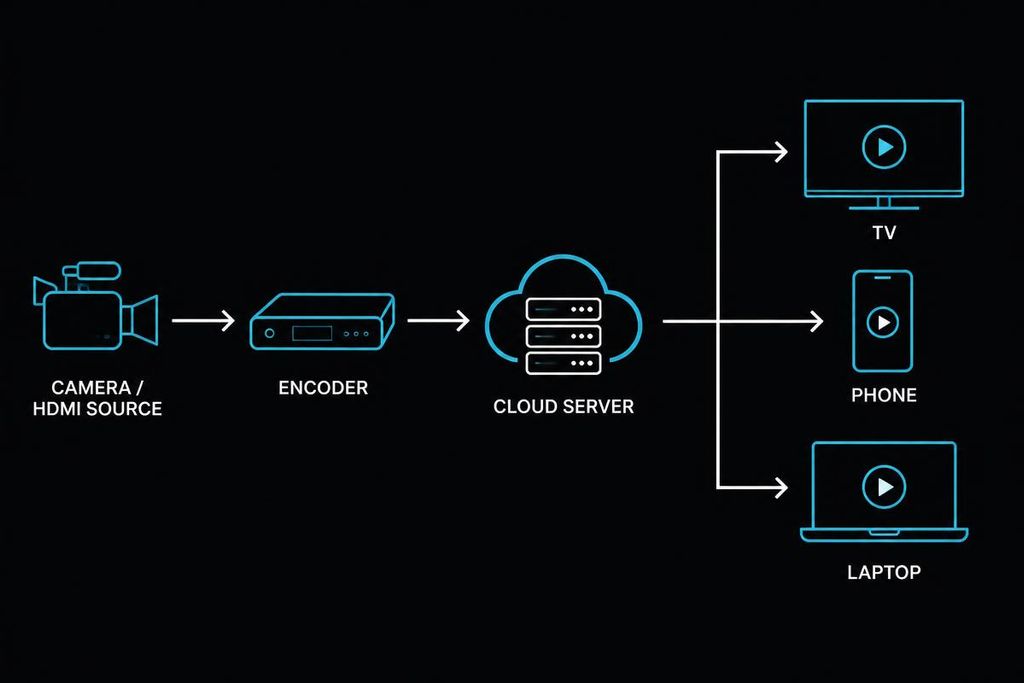

What is a 4K IPTV encoder and how does it work?

Strip away the marketing and the job is simple: convert pictures into packets. An uncompressed 2160p60 signal runs at roughly 12 Gbps. No network delivers that to consumers, so the encoder must reduce it by a factor of several hundred while keeping the result visually intact. The chain has six stages.

Stage 1 — the source

A camera, satellite receiver, media player, playout server or console feeds the unit over HDMI 2.0 or 12G-SDI. The source dictates the ceiling: a 1080p feed upscaled inside the encoder gains resolution numbers but no real detail.

Stage 2 — capture and pre-processing

The appliance de-interlaces if required, converts color space, optionally scales, and applies light noise reduction. Clean input costs fewer bits later, which is why a good de-noiser is worth more than an extra 10 Mbps of headroom.

Stage 3 — compression

This is where the silicon earns its price. H.265 (HEVC) delivers roughly the same perceived quality as H.264 at 40 to 50 percent fewer bits, which is decisive at UHD resolutions. H.264/AVC survives because every decoder on earth supports it; AV1 is gaining ground on newer chipsets but hardware support in the field is still uneven.

• HEVC / H.265 technical overview (Wikipedia) ↗

Stage 4 — packaging and transport

The compressed elementary streams are multiplexed and handed to a transport protocol. RTMP remains the lowest common denominator for ingest. SRT adds packet recovery and encryption over lossy links, which makes it the default choice for anything traveling across the open internet. UDP or RTP multicast stays inside managed LANs, where it feeds hundreds of screens without duplicating traffic.

• SRT Alliance — open-source secure transport ↗

Stages 5 and 6 — server and playback

A streaming server or CDN receives the contribution feed, transcodes it into an adaptive ladder (2160p, 1080p, 720p, 480p), repackages it as HLS or DASH, and distributes it. The viewer's app then picks the highest rung their connection sustains. If you are assembling the delivery side rather than the contribution side, our notes on player choice and network requirements are worth a read before you commit to a topology.

• IPTV player and device setup guides →
• Channel and content line-up →

12 features to check before buying a UHD IPTV encoder

Datasheets are written to flatter. These are the twelve lines that actually determine whether a unit survives a season of live output.

1. HEVC support in hardware, not software

Ask whether H.265 runs on a dedicated ASIC or on the general-purpose CPU. Software HEVC at 2160p60 throttles under heat within an hour. Hardware pipelines hold their frame rate indefinitely.

2. HDMI 2.0 (or 2.1) input with HDCP handling

HDMI 1.4 caps UHD at 30 frames per second — unusable for sport. Confirm 2.0 at minimum, 18 Gbps bandwidth, and a documented, lawful position on protected sources.

3. Genuine 2160p at 60 fps

Some units advertise 4K but drop to 30 fps when both encoding channels are active. Test with fast motion, not a static slide.

4. Bitrate control that you choose

CBR keeps contribution links predictable. VBR and capped-VBR save bandwidth on static content. A unit that offers only one mode will eventually be the wrong tool.

5. Latency budget

Sub-100 ms glass-to-glass is achievable on a LAN with low-latency mode and short GOPs. Across the internet with SRT, 200 to 500 ms is realistic. Treat any claim of near-zero latency over WAN with suspicion.

6. Channel density

One physical input can produce several outputs — a UHD main plus HD and SD mirrors. Count concurrent encoding sessions, not ports.

7. Protocol breadth

SRT, RTMP/RTMPS, RTSP, HLS push, UDP/RTP unicast and multicast, and increasingly NDI or RIST. Breadth here is future-proofing; a single-protocol box locks you to one platform.

8. Audio handling

AAC-LC is the safe default. Check for multi-track output, embedded and analogue inputs, loudness normalisation and an adjustable audio delay — the last one saves entire installations.

9. Web interface and API

A responsive local UI matters on install day. A REST API and SNMP matter every day afterwards, because that is how you monitor a fleet without driving to site.

10. Thermal design and duty cycle

Ask for the continuous operating temperature range and whether the chassis is fanless. Passive aluminium enclosures are silent but need airflow around them; fan-cooled units need filter maintenance.

11. Redundancy

Dual power inputs, dual Ethernet, automatic reconnection, local recording as a failover and a watchdog that reboots a stalled encode. For paid services these are not optional extras.

12. Firmware track record

Look at the vendor's release history. A device that received three firmware updates in the past year is supported. One that has had nothing since launch is abandoned.

Who benefits from an HDMI to IP encoder

The hardware pays for itself in different ways depending on the operation.

• IPTV providers and resellers — bring local or specialist channels in-house instead of paying for third-party feeds, and control quality end to end.
• Hotels and hospitals — distribute a single UHD source to hundreds of rooms over existing Ethernet, eliminating coaxial runs and per-room tuners.
• Sports bars and venues — feed dozens of screens from a handful of sources with frame-accurate synchronisation, so no table sees a goal before another.
• Churches and campuses — stream services in UHD to overflow rooms and to an online congregation from one appliance, with recording as a by-product.
• Broadcasters and production teams — use encoders as contribution links from remote sites back to master control over bonded or public connections.
• Corporate and education — town halls, lectures and training sessions delivered to desks over multicast without saturating the WAN.

4K hardware vs 1080p hardware vs software encoding

Prices below reflect typical street pricing for each class of device in the United States during 2026, not a single vendor's quote. Specifications vary by model, so treat the table as a shortlist framework and verify against the datasheet of any unit you shortlist.

How to read that table

Software encoding wins on flexibility — overlays, scene switching, instant format changes — and loses on determinism. A Windows update at kickoff is a business risk that a dedicated appliance simply does not carry. Conversely, buying a sixteen-channel rack unit to serve one screen wastes capital that would be better spent on upstream bandwidth. Match the class to the failure you can least afford.

Setting up a 4K streaming encoder, step by step

Allow ninety minutes for a first installation. The order below prevents the two most common commissioning mistakes: configuring the stream before the video is clean, and testing only on the local network.

Step 1 — inspect and mount

Rack or shelf the unit with clearance on all vented faces. Confirm the box contains the correct regional power supply and that the firmware label matches what the vendor currently publishes.

Step 2 — connect the signal chain

Use certified Premium High Speed HDMI cable — under 5 metres for a passive run, fibre HDMI beyond that. Cable is the single most common cause of intermittent UHD dropouts. Connect Ethernet before power so the unit negotiates a link on boot.

Step 3 — reach the web interface

Most appliances arrive on a static address such as 192.168.1.168. Put a laptop on the same subnet, open the page, then immediately change the default password and set a fixed IP or a DHCP reservation.

Step 4 — verify the input

Before touching stream settings, confirm the preview shows the correct resolution, frame rate and audio level. If the source reports 2160p30 when you expected 60, fix that at the source now — no downstream setting recovers it.

Step 5 — configure the encode

Sensible UHD starting point: H.265 Main profile, 2160p60, 18 to 25 Mbps CBR for sport or 12 to 16 Mbps for talking-head content, GOP length equal to two seconds, and AAC-LC stereo at 128 kbps. Lower the GOP to one second only if the platform requires faster channel joins.

Step 6 — set the output

For internet delivery choose SRT in caller mode, point it at the ingest host and port, set latency to roughly four times the measured round-trip time, and enable encryption with a passphrase. For RTMP, paste the server URL and stream key exactly as issued. On a managed LAN, use multicast in the 239.0.0.0/8 range with IGMP snooping enabled on the switches.

Step 7 — soak test before you go live

Run the stream for a minimum of two hours while watching bitrate stability, dropped packet counters and chassis temperature. Confirm playback on a television, a phone on cellular and a desktop browser. Only then hand the service to viewers, and document the working configuration — export it if the unit supports configuration backup.

• Compare subscription plans →
• Customer results and reviews →

Common problems and how to fix them

Three faults account for the overwhelming majority of encoder support tickets. Each has a reliable diagnostic path.

Buffering and stuttering at the viewer

Establish where the loss occurs before changing anything. If the encoder's own statistics page shows a steady bitrate and no retransmissions, the fault is downstream. If retransmission counts climb, the upload path is the constraint.

• Keep the contribution bitrate below 50 percent of measured sustained upload speed
• Raise SRT latency to four or five times the round-trip time on unstable links
• Switch the encode from VBR to CBR so the network sees a predictable load
• Prioritise the encoder in the router's QoS policy and take it off Wi-Fi entirely
• Ensure the streaming server produces a proper adaptive ladder rather than a single UHD rung

Overheating and thermal throttling

A unit that runs cleanly for forty minutes and then softens or drops frames is almost always thermal. Continuous UHD HEVC encoding is a sustained workload, not a burst one.

• Leave at least one rack unit of clearance above and below a fanless chassis
• Keep ambient intake below 35 °C and clean any filters monthly
• Mount vertically only if the manufacturer's airflow diagram allows it
• Log chassis temperature over SNMP and alert before the throttle point, not after

Audio drifting out of sync

Lip-sync error grows over time when the audio and video clocks disagree. Two seconds of drift after an hour is a clocking problem, not a delay setting.

• Lock audio to the video clock in the encoder settings where the option exists
• Use embedded HDMI audio rather than a separate analogue feed when possible
• Apply a fixed offset in milliseconds only for constant, non-growing offsets
• Match sample rate end to end at 48 kHz; 44.1 kHz sources introduce cumulative error
• Confirm the streaming server is not re-muxing with its own timestamp policy

Frequently asked questions

Does 4K encoding require H.265?

Not strictly, but practically yes. H.264 at 2160p60 needs roughly 40 to 50 Mbps for comparable quality, while HEVC achieves it near 20 to 25 Mbps. On any bandwidth-limited path, the older codec is uneconomic.

How much upload bandwidth does a UHD stream need?

Budget 20 to 25 Mbps of encoded video plus overhead, and provision at least double that as sustained upload capacity. A 50 Mbps symmetrical connection is a sensible floor for a single UHD contribution feed.

Is SRT better than RTMP?

For unmanaged internet paths, yes. SRT recovers lost packets, encrypts by default and reports link statistics. RTMP is older, ubiquitous and fine on reliable connections, but it offers no recovery mechanism.

Can one appliance handle several channels at once?

Multi-channel rack units encode four or more independent UHD inputs simultaneously, each with its own bitrate and destination. Single-channel devices can still produce multiple bitrate variants of one source.

What latency should I expect in practice?

Roughly 60 to 150 ms on a local network in low-latency mode, 200 to 500 ms across the internet with SRT, and two to twenty seconds at the viewer once HLS or DASH segmenting is added by the delivery platform.

Do I need SDI if my sources are HDMI?

No, but SDI carries reliably over long coaxial runs with locking connectors, which is why permanent installations often specify it. For short runs from consumer sources, HDMI is sufficient.

Is hardware or software encoding better value?

Hardware wins wherever uptime is contractual: it boots into a known state, draws little power and does one job. Software wins where production flexibility matters more than determinism. Many operations run both — software for produced shows, appliances for continuous channels.

Hardware buying checklist before you order

Before any purchase order goes out, walk the specification sheet against this list. Every line below is a spec sellers quietly omit, and each one costs money to fix after the box arrives.

• Input count and type. One HDMI in is fine for a single camera or console; multi-channel rack units earn their price only when you genuinely feed several sources at once.
• Hardware HEVC. Confirm H.265 encoding happens on silicon, not in software. Software-only units collapse under sustained UHD load.
• Maximum input resolution and frame rate. 4K60 is a different chip class from 4K30. A sheet that lists only "4K" without a frame rate usually means 30.
• Transport protocols. SRT or RTP with forward error correction for anything crossing the public internet; bare RTMP is fine only on a controlled local network.
• Audio handling. Check embedded HDMI audio passthrough plus a separate analog input, and confirm the sample rate matches your playout chain.
• Bitrate ceiling and CBR support. Constant bitrate matters more than a headline maximum, because IPTV distribution budgets bandwidth per stream.
• Power and thermals. Redundant power and active cooling for anything running unattended around the clock; fanless is a benefit only in quiet rooms with low duty cycles.
• Management and firmware. A web UI is the minimum, an API is the difference between monitoring one unit and monitoring twenty. Ask when firmware last shipped.

Conclusion and recommendation

The right specification follows from one question: what does an outage cost you? A church streaming a Sunday service to a modest online audience is well served by a prosumer single-channel appliance with HEVC and SRT for a few hundred dollars. A reseller running paid channels should be in the professional single-channel or multi-channel rack class, with redundant power, an API for monitoring and a vendor that ships firmware.

Whichever class you choose, three decisions matter more than the badge on the front: hardware HEVC rather than software, SRT rather than bare RTMP for anything crossing the public internet, and honest bandwidth headroom of at least two times your encoded bitrate. Get those right and the picture holds up on the nights that matter.

If you would rather watch than build, our own service delivers UHD channels with no hardware at all — compare the plans or message the team on WhatsApp and we will get you running the same day.
