HDMI IPTV: Turn Any HDMI Source Into a Live Stream
August 22, 2026 · 6 min read
A camera, a cable box and a games console all speak the same language on their back panel, and none of it travels over the internet on its own. HDMI IPTV is the bridge: it takes that uncompressed HDMI signal, compresses it and republishes it as a channel any TV, phone or set-top box can open. This guide walks through how the conversion works, the bitrate and latency numbers that decide whether it holds up, how the main approaches compare, and what to check before you pay for anything.
How HDMI IPTV actually works
HDMI carries video with no compression at all. A 1080p60 feed occupies roughly 3 Gbps on the cable and 4K60 climbs past 12 Gbps, figures set out in the HDMI 2.1 specification. Nothing outside a local cable run moves data at that rate, so the first job of any HDMI to IPTV converter is to shrink the signal by two to three orders of magnitude.
That happens in three steps. The chip digitises incoming frames, compresses them with H.264 or H.265, then wraps the result in a delivery protocol — HLS for compatibility, RTMP for platform ingest, SRT when the network is unreliable. Your 12 Gbps 4K source leaves as a 15-25 Mbps stream.
One constraint catches people out: HDCP. Copy-protected outputs from retail streaming apps will not encode, and a compliant device shows a black frame rather than stripping the protection.
Where an HDMI IPTV setup earns its place
The clearest real-world case is a hotel or sports bar feeding one satellite receiver to forty screens. A single IPTV HDMI box sits on the receiver output and every TV pulls the same channel over the existing network, replacing a building's worth of coax splitters and amplifiers.
Other setups that rely on the same conversion:
- Live events — a switcher output goes straight to an audience stream without a production PC
- Houses of worship and lecture halls — one camera feed distributed to overflow rooms
- Security and industrial monitoring — camera HDMI outputs turned into always-on channels
- Gaming and studio work — a console feed published without a capture card in the loop
Comparing the four ways to stream HDMI to IPTV
Cost is rarely the deciding factor. Setup time and how much delay you can tolerate usually are.
| Solution | Setup difficulty | Latency | Cost | Best for |
|---|---|---|---|---|

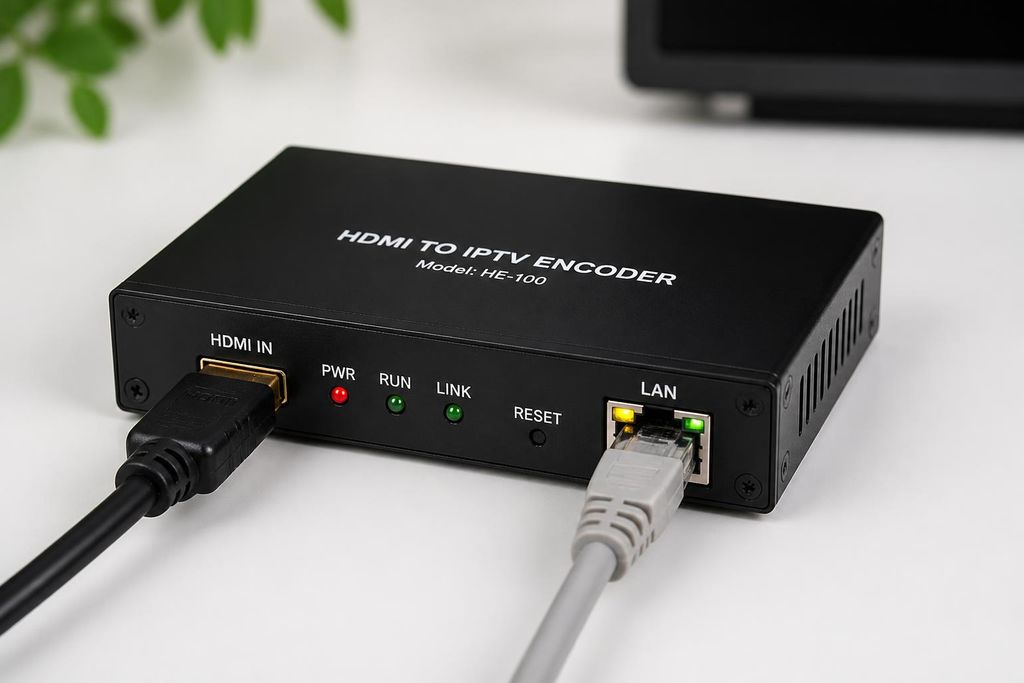

| Hardware encoder (standalone box) | Low — plug in, set bitrate | 0.1-0.5 sec | $90-$600 | Unattended 24/7 feeds |
| Software encoder (PC + capture card) | Medium — needs a tuned machine | 0.5-3 sec | $120 + PC | Occasional or edited broadcasts |
| DIY server (Raspberry Pi, FFmpeg) | High — command line, manual tuning | 1-5 sec | Under $150 | Tinkerers and lab testing |
| Full IPTV service | None — log in and watch | Provider managed | $15-$60 | Viewers who only want channels |
How to choose the right HDMI IPTV solution
Work backwards from the signal you are producing and the audience receiving it. Five criteria settle most decisions:
- Input ceiling — confirm the device handles your exact resolution and frame rate, not just "4K"
- Codec support — H.265 delivers comparable quality to H.264 at roughly 40% less bitrate, which matters on limited upload
- Protocol range — SRT recovers lost packets on shaky links; HLS reaches the widest set of players
- Upload headroom — budget double your encoded bitrate, so 6 Mbps of 1080p60 wants 12 Mbps sustained
- Channel count — multi-input rack units cost less per channel than several single-input boxes
If you only want to watch
Encoders exist for people sending video out. If your goal is simply live channels on a TV or stick, no hardware is involved at all — an app and a login is the entire setup.
HDMI IPTV pricing at a glance
Our own plans sit at the viewing end of the chain, and the tiers map to how many screens you run:
| Tier | Price | Key features | Ideal for |
|---|---|---|---|
| Basic — 1 Month | $15 | 1000+ channels, full VOD, 1 device, 4K where available | Trying the service on one screen |
| Pro — 3 Months | $35 | Everything in Basic, all US sports, PPV events, 2 devices | A household through a full season |
| Business — 12 Months | $60 | Everything in Pro, anti-freeze servers, 3 devices, 7-day money-back | Year-round or multi-room use |
Common mistakes and quick fixes
Nearly every failed live HDMI streaming setup traces back to one of four errors.
- Bitrate set too high for the uplink — the stream stalls in bursts; drop to half your tested upload speed
- Long GOP on a fast-motion feed — viewers wait several seconds to join; shorten keyframe interval to 2 seconds
- Wi-Fi between encoder and router — jitter causes drops no bitrate change will fix; use ethernet
- Mismatched frame rate — a 50 fps source encoded at 60 fps produces judder on every pan
Two questions we get most
Can I convert an HDMI signal to an IPTV stream without a computer? Yes. A standalone hardware encoder compresses and publishes on its own; a capture card cannot, because it only hands the signal to a host machine that does the work in software.
What bitrate should I use for HDMI IPTV? Around 6-8 Mbps for 1080p60 with H.264, 4-5 Mbps with H.265, and 15-25 Mbps for 4K60. Streaming Media's engineering coverage is a solid reference for tuning beyond those starting points.
Where to go next
HDMI IPTV comes down to three decisions: pick the codec that fits your upload, give the stream twice the bandwidth it thinks it needs, and keep the encoder on a wire. Get those right and the hardware brand barely matters.
If you arrived here wanting reliable channels instead of a build project, skip the encoder entirely. Twelve months of 1000+ live channels in 4K costs $60 — message us on WhatsApp and you will be watching the same day.
